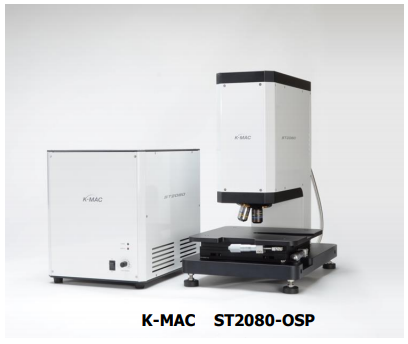

Optical Organic Solder Preservative OSP Thickness Measurement.
Specifications:
Wavelength – 420nm ~ 640nm
Thickness – 350Å ~ 3㎛ (depending on samples)
Min. Spot Size – 1.48㎛(5X), 0.148㎛(50X)
Target Area – 864 x 648㎛ / 86.4 x 64.8㎛
Lens – 5X, 50X
Size of sample stage – 200mm x 200mm
Benefits:

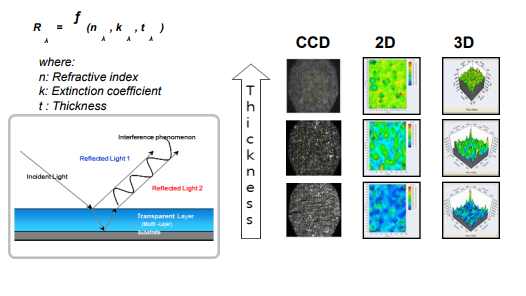

Optical, non-destructive OSP measurement
Fast Measurement (400 points / 40 sec)
Auto-focusing
2D & 3D Mapping
